Docker Swarm: The Simple Yet Powerful Container Orchestration Solution

In the ever-evolving landscape of container orchestration, Docker Swarm stands as a testament to the power of simplicity and integration. Built directly into the Docker Engine, Swarm offers a native clustering solution that transforms a group of Docker hosts into a single, virtual Docker host. While Kubernetes has captured significant market attention, Docker Swarm continues to provide compelling advantages for teams seeking a streamlined approach to container orchestration without sacrificing essential capabilities.

This exploration of Docker Swarm reveals why many organizations still choose this elegant solution for their containerization needs, and how its design philosophy of “simple by default, powerful when needed” delivers real-world benefits for development and operations teams.

Unlike other container orchestration platforms that require separate installations and configurations, Docker Swarm comes integrated with the Docker Engine. This integration provides several key benefits:

• Zero additional installation: If you have Docker Engine 1.12 or later, you already have Swarm.
• Familiar command structure: Use the standard Docker commands you already know.
• Unified CLI experience: Manage both individual containers and clustered services through the same interface.

# Initialize a swarm on the current node
docker swarm init --advertise-addr 192.168.1.10

# Join a worker node to the swarm
docker swarm join --token SWMTKN-1-49nj1cmql0jkz5s954yi3oex3nedyz0fb0xx14ie39trti4wxv-8vxv8rssmk743ojnwacrr2e7c 192.168.1.10:2377

# Deploy a service across the swarm
docker service create --replicas 3 --name nginx-service nginx

This simplicity dramatically reduces the learning curve for teams already familiar with Docker, allowing them to adopt orchestration capabilities without mastering an entirely new platform.

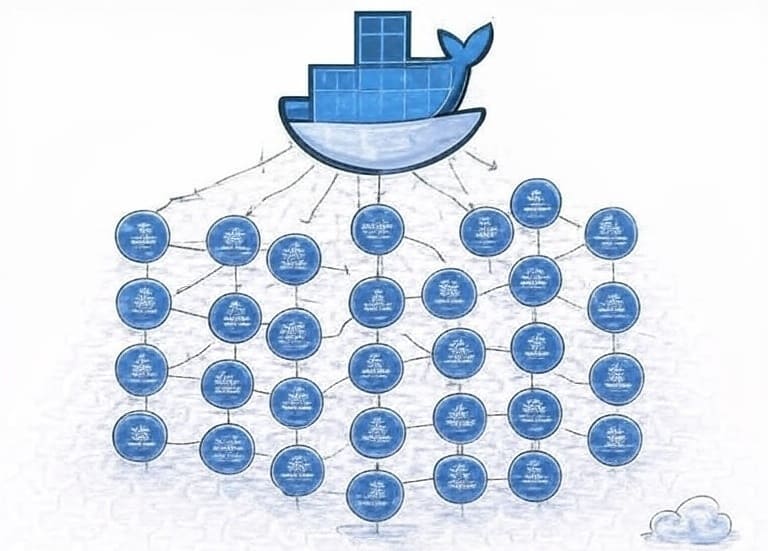

Docker Swarm uses a straightforward architecture that divides nodes into two types:

• Manager nodes: Responsible for orchestration and cluster management
• Worker nodes: Execute containers as assigned by managers

This design enables:

• Distributed state: Managers use the Raft consensus algorithm to maintain a consistent state
• Declarative service model: Define the desired state of your services and let Swarm maintain it
• Scalable management: Support for multiple manager nodes for high availability
• Self-healing capabilities: Automatic rescheduling of containers when nodes fail

Docker Swarm introduces the concept of services, which are the building blocks of a swarm-based application:

# Create a service with 5 replicas
docker service create \
  --name web-frontend \
  --replicas 5 \
  --publish published=80,target=80 \
  --mount type=volume,source=web-data,destination=/app/data \
  nginx:latest

# Scale the service up or down
docker service scale web-frontend=10

Services allow you to:

• Define replica counts: Control how many instances should run
• Declare update policies: Configure how updates roll out across instances
• Specify resource constraints: Limit CPU and memory usage
• Configure restart policies: Define behavior when containers exit

Swarm provides built-in load balancing capabilities:

• Ingress load balancing: Distribute external traffic across service instances
• Internal service mesh: Enable service-to-service communication
• DNS-based service discovery: Automatically register services in Swarm’s internal DNS

# Create a backend service
docker service create --name database --network app-network mysql

# Create a frontend service that can discover the database by name
docker service create \
  --name web-app \
  --network app-network \
  --env "DB_HOST=database" \
  --publish 80:80 \
  webapp:latest

This integrated approach simplifies application networking and eliminates the need for external service discovery mechanisms in many cases.

For handling sensitive information, Docker Swarm provides a secrets management system:

# Create a secret
echo "supersecretpassword" | docker secret create db_password -

# Use the secret in a service
docker service create \
  --name database \
  --secret db_password \
  --env "DB_PASSWORD_FILE=/run/secrets/db_password" \
  mysql:latest

This capability allows you to:

• Securely distribute credentials: Share sensitive data with specific services
• Avoid configuration exposure: Keep secrets out of image definitions
• Implement rotation strategies: Update secrets without rebuilding containers

Swarm enables sophisticated deployment strategies:

# Create a service with update configuration
docker service create \
  --name web-app \
  --replicas 5 \
  --update-delay 10s \
  --update-parallelism 2 \
  --update-failure-action rollback \
  --health-cmd "curl -f http://localhost/health || exit 1" \
  --health-interval 5s \
  --health-retries 3 \
  webapp:latest

# Update the service
docker service update --image webapp:v2 web-app

This configuration ensures:

• Controlled rollouts: Update instances in batches
• Automatic health verification: Check container health before continuing updates
• Failure handling: Roll back to the previous version if updates fail

While Kubernetes has become the dominant orchestration platform, Docker Swarm offers distinct advantages in specific scenarios:

• Small to medium deployments: Swarm provides adequate features without the overhead
• Teams new to containerization: The gentle learning curve accelerates adoption
• Development and testing environments: Quick setup and familiar Docker commands
• Edge computing applications: Lighter resource footprint suits constrained environments
• Simple applications: Applications without complex orchestration requirements

• Large-scale deployments: Managing hundreds or thousands of services
• Complex microservice architectures: Applications with sophisticated networking and deployment patterns
• Organizations with significant operational resources: Teams able to invest in Kubernetes expertise
• Advanced auto-scaling requirements: Workloads needing pod-level and cluster-level scaling
• Ecosystem integration: Applications requiring the broader Kubernetes ecosystem

For production environments, a proper high-availability setup includes:

- Multiple manager nodes (3-5 recommended)
- Manager nodes distributed across availability zones
- Worker nodes scaled based on workload requirements
- Regular manager state backups

A typical deployment command sequence:

# Initialize the first manager
docker swarm init --advertise-addr <MANAGER-IP>

# Join additional managers (recommended minimum of 3)
docker swarm join --token <MANAGER-TOKEN> <MANAGER-IP>:2377

# Join workers
docker swarm join --token <WORKER-TOKEN> <MANAGER-IP>:2377

# Deploy services with placement constraints for availability
docker service create \
  --name critical-service \
  --replicas 6 \
  --placement-pref 'spread=node.labels.zone' \
  --constraint 'node.role==worker' \
  my-application:latest

Swarm can implement sophisticated deployment strategies such as blue-green deployments:

# Deploy the blue version
docker service create \
  --name web-blue \
  --network app-network \
  --label environment=production \
  webapp:current

# Deploy the green version (new release)
docker service create \
  --name web-green \
  --network app-network \
  --label environment=staging \
  webapp:new

# Test the green version

# Update the proxy to switch traffic
docker service update \
  --image nginx:latest \
  --mount-add type=bind,source=new-nginx.conf,destination=/etc/nginx/nginx.conf \
  proxy-service

# Remove the old version after successful switch
docker service rm web-blue

This pattern minimizes downtime and risk during deployments.

Some components need to run on every node in the swarm:

# Deploy a monitoring agent on every node
docker service create \
  --name node-exporter \
  --mode global \
  --mount type=bind,source=/proc,destination=/host/proc,readonly \
  --mount type=bind,source=/sys,destination=/host/sys,readonly \
  --mount type=bind,source=/,destination=/rootfs,readonly \
  prom/node-exporter:latest

The global service mode is ideal for:

• Monitoring agents
• Log collectors
• Security scanners
• Network proxies

Manager nodes are critical security components:

• Restrict access: Limit SSH access to manager nodes
• Firewall configuration: Allow only necessary swarm ports (2377/tcp, 7946/tcp+udp, 4789/udp)
• Use separate networks: Isolate manager communication from application traffic
• Regular updates: Keep Docker Engine updated with security patches

Secure node communication with TLS:

# Initialize swarm with auto-lock enabled
docker swarm init --autolock --advertise-addr <MANAGER-IP>

# Rotate certificates
docker swarm ca --rotate

# Rotate encryption keys
docker swarm update --autolock=true

Create isolated networks for application components:

# Create an overlay network for frontend services
docker network create --driver overlay frontend-net

# Create an overlay network for backend services
docker network create --driver overlay --attachable backend-net

# Deploy services to appropriate networks
docker service create \
  --name api \
  --network frontend-net \
  --network backend-net \
  api-service:latest

docker service create \
  --name database \
  --network backend-net \
  database:latest

This approach implements the principle of least privilege for network communication.

Docker Swarm provides several commands for monitoring and troubleshooting:

# Check overall swarm status
docker info

# List all nodes in the swarm
docker node ls

# Inspect a specific node
docker node inspect <NODE-ID>

# View service details
docker service ps <SERVICE-NAME>

# Check service logs
docker service logs <SERVICE-NAME>

For comprehensive monitoring, integrate with external tools:

• Prometheus + Grafana: Collect metrics and visualize performance
• ELK Stack: Centralize and analyze logs
• cAdvisor: Container-level performance monitoring
• Docker Enterprise: Commercial monitoring and management solution

A typical Prometheus configuration for Swarm might include:

# prometheus.yml
scrape_configs:
  - job_name: 'swarm'
    dns_sd_configs:
      - names:
        - 'tasks.cadvisor'
        type: 'A'
        port: 8080

As demand increases, scale services horizontally:

# Manual scaling
docker service scale web-frontend=10 api-service=8 worker-service=15

# Automated scaling with third-party tools like Docker Flow Monitor

When scaling manager nodes:

• Keep an odd number (3, 5, 7) for proper Raft consensus
• Understand that more managers increase consensus overhead
• Target 3 managers for small/medium swarms, 5 for larger deployments
• Never exceed 7 managers due to performance implications

Add worker nodes to increase capacity:

# Generate a join token
docker swarm join-token worker

# Join new nodes using the token
docker swarm join --token <WORKER-TOKEN> <MANAGER-IP>:2377

Apply appropriate resource constraints to prevent resource contention:

# Set resource limits for a service
docker service create \
  --name resource-intensive-app \
  --limit-cpu 0.5 \
  --limit-memory 512M \
  --reserve-cpu 0.2 \
  --reserve-memory 256M \
  resource-heavy-app:latest

Use placement constraints for optimal service distribution:

# Place services on nodes with specific capabilities
docker service create \
  --name specialized-service \
  --constraint 'node.labels.capability==gpu' \
  --constraint 'node.labels.environment==production' \
  gpu-app:latest

# Distribute services across availability zones
docker service create \
  --name ha-service \
  --placement-pref 'spread=node.labels.zone' \
  ha-app:latest

Docker Swarm is particularly well-suited for edge computing:

• Lower resource overhead: Runs efficiently on limited hardware
• Simple setup: Easy deployment in remote locations
• Built-in HA: Resilience for unreliable environments
• Global services: Ensure critical components run everywhere

For development workflows, Swarm offers:

• Local swarm mode: Test orchestration on a single development machine
• Compose integration: Use docker-compose files with swarm mode
• Quick feedback cycles: Rapid deployment and testing
• Environment consistency: Mirror production configurations

# Convert docker-compose to swarm deployment
docker stack deploy -c docker-compose.yml my-application

Transition from single-host to multi-host deployments:

# Traditional docker-compose.yml
version: '3'
services:
  web:
    image: webapp:latest
    ports:
      - "80:80"
  database:
    image: mysql:5.7
    volumes:
      - db-data:/var/lib/mysql
volumes:
  db-data:

Deploy to swarm with minimal changes:

# Deploy as a swarm stack
docker stack deploy -c docker-compose.yml my-application

# Scale services
docker service scale my-application_web=5

For organizations considering future migration to Kubernetes:

• Use Docker Compose files with Swarm compatibility
• Implement infrastructure as code from the beginning
• Consider tools like Kompose for conversion assistance
• Maintain clean separation between application and infrastructure concerns

Regular updates ensure security and feature improvements:

# Check current version
docker version

# Update Docker Engine on Ubuntu
apt-get update && apt-get upgrade docker-ce

To maintain flexibility for future orchestration changes:

• Avoid swarm-specific features when possible
• Use Docker Compose files compatible with multiple orchestrators
• Containerize applications with portability in mind
• Implement infrastructure as code for reproducibility

Docker Swarm represents a compelling option for container orchestration that balances power with simplicity. Its integrated approach, gentle learning curve, and production-ready capabilities make it an excellent choice for many deployment scenarios, particularly those where operational simplicity is valued.

While Kubernetes has captured significant market share in the orchestration space, Docker Swarm continues to evolve and provide a streamlined alternative that meets the needs of many organizations without requiring extensive specialized knowledge. For teams already familiar with Docker, the transition to Swarm orchestration is nearly seamless, allowing them to quickly leverage the benefits of clustering without a complete retooling of their skills and processes.

Whether you’re just beginning your container orchestration journey or reconsidering your current approach, Docker Swarm deserves serious consideration as a solution that embodies the “just enough” philosophy of providing essential capabilities without unnecessary complexity.

#DockerSwarm #ContainerOrchestration #Docker #Microservices #DevOps #CloudNative #Containerization #SwarmMode #DockerClustering #HighAvailability #ContainerManagement #ServiceDiscovery #EdgeComputing #LoadBalancing #InfrastructureAsCode #ContainerDeployment #MicroserviceArchitecture #ServerlessContainers #DevSecOps #DistributedSystems
