Galaxy Schema (Fact Constellation): Advanced Multi-Dimensional Modeling for Enterprise Data Warehouses

In the universe of data warehouse design, the Galaxy Schema—also known as Fact Constellation—represents one of the most sophisticated and versatile architectural patterns. Unlike simpler schemas that focus on single business processes, the Galaxy Schema elegantly orchestrates multiple interconnected business processes within a unified dimensional framework, creating a constellation of fact tables that share common dimensions.

The Galaxy Schema extends the fundamental concepts of dimensional modeling by connecting multiple fact tables through shared dimension tables. This creates a schema that resembles a galaxy of stars, with each fact table forming its own star pattern while sharing dimensional context with other facts.

1. Multiple Fact Tables: Each representing a different business process or event (sales transactions, inventory movements, customer service interactions)
2. Shared Dimension Tables: Common dimensions used across multiple fact tables (time, customer, product, location)
3. Conforming Dimensions: Dimensions designed with consistent keys, attributes, and hierarchies to enable cross-process analysis
4. Integrated Metrics: Business measures that can be analyzed across multiple business processes through the shared dimensional context

This architecture creates a powerful framework for enterprise-wide analytics that transcends the limitations of isolated data marts.

The Galaxy Schema excels at modeling the interconnected nature of business operations:

• Cross-Process Analysis: Analyze how one business process affects another (e.g., how marketing campaigns influence both website traffic and in-store sales)
• End-to-End Process Visibility: Track complete business workflows across departmental boundaries
• Consistent Business Definitions: Enforce unified business rules and definitions across the enterprise
• Reduced Data Siloing: Eliminate isolated analytical environments that prevent comprehensive insights

Shared dimensions create significant advantages for both development and analysis:

• Build Once, Use Many Times: Dimension development effort is leveraged across multiple fact tables
• Consistent Hierarchies: Analytical pathways remain consistent regardless of which fact is being analyzed
• Simplified ETL Maintenance: Dimension updates only need to be implemented once
• Enhanced Data Governance: Consistent business rules can be enforced across all analytical processes

The multi-fact structure enables sophisticated analytical capabilities:

• Drill-Across Functionality: Seamlessly navigate between different business processes
• Multi-Fact Metrics: Create calculated measures that span multiple fact tables
• Comprehensive Dashboards: Build interfaces that incorporate metrics from diverse business areas
• Balanced Scorecards: Implement enterprise performance management that spans departmental boundaries

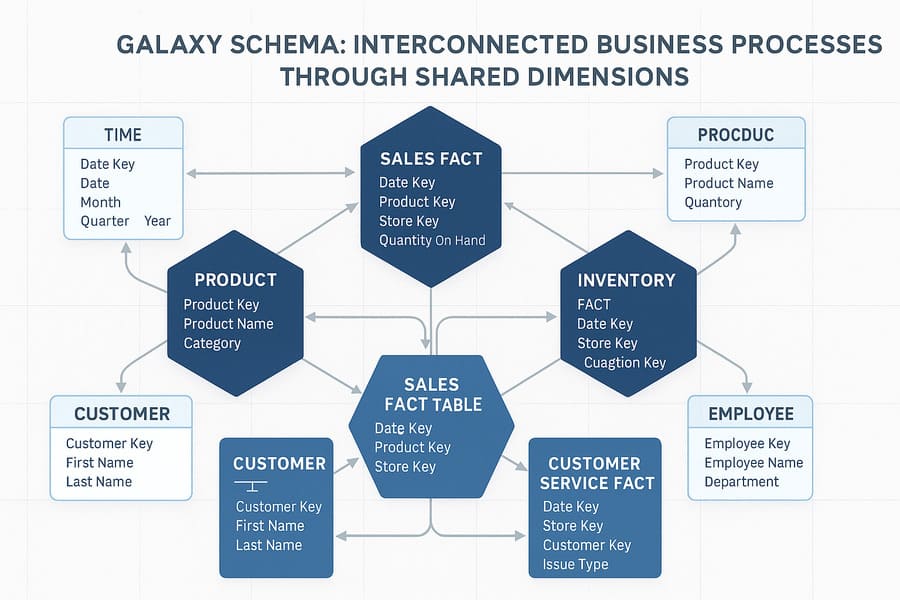

To illustrate the power of the Galaxy Schema, let’s examine how it might be implemented in a retail enterprise data warehouse.

In this example, our Galaxy Schema includes four primary fact tables:

• TimeKey (FK to Time Dimension)
• ProductKey (FK to Product Dimension)
• StoreKey (FK to Store Dimension)
• CustomerKey (FK to Customer Dimension)
• EmployeeKey (FK to Employee Dimension)
• PromotionKey (FK to Promotion Dimension)
• Quantity (Measure)
• UnitPrice (Measure)
• ExtendedAmount (Measure)
• DiscountAmount (Measure)
• NetAmount (Measure)
• CostAmount (Measure)
• ProfitAmount (Measure)

• TimeKey (FK to Time Dimension)
• ProductKey (FK to Product Dimension)
• StoreKey (FK to Store Dimension)
• SupplierKey (FK to Supplier Dimension)
• WarehouseKey (FK to Warehouse Dimension)
• QuantityReceived (Measure)
• QuantitySold (Measure)
• QuantityAdjusted (Measure)
• EndingQuantity (Measure)
• DaysOfSupply (Measure)
• InventoryValue (Measure)

• TimeKey (FK to Time Dimension)
• CampaignKey (FK to Campaign Dimension)
• ProductKey (FK to Product Dimension)
• MarketKey (FK to Market Dimension)
• ChannelKey (FK to Channel Dimension)
• ImpressionCount (Measure)
• ClickCount (Measure)
• ConversionCount (Measure)
• CampaignCost (Measure)
• Revenue (Measure)
• ROI (Measure)

• TimeKey (FK to Time Dimension)
• CustomerKey (FK to Customer Dimension)
• ProductKey (FK to Product Dimension)
• StoreKey (FK to Store Dimension)
• EmployeeKey (FK to Employee Dimension)
• IssueTypeKey (FK to Issue Type Dimension)
• ResolutionKey (FK to Resolution Dimension)
• DurationMinutes (Measure)
• SatisfactionScore (Measure)
• ResolutionCost (Measure)

Note how these fact tables share several key dimensions:

• Time Dimension: Used across all fact tables to enable temporal analysis
• Product Dimension: Connects sales, inventory, marketing, and customer service around products
• Store Dimension: Links physical location data across sales, inventory, and customer service
• Customer Dimension: Connects customer service interactions with purchase history
• Employee Dimension: Relates sales performance to customer service quality

This dimensional sharing creates a fully integrated analytical environment that enables questions spanning multiple business processes:

• Which products have high sales but also high customer service issues?
• How do marketing campaigns affect inventory turnover rates?
• What is the correlation between employee sales performance and customer satisfaction?
• How do store layout changes impact both sales and inventory management?

The true power of the Galaxy Schema becomes apparent when examining complex analytical scenarios that would be difficult or impossible with isolated star schemas.

By connecting sales, marketing, and customer service facts:

1. Acquisition Cost: Calculate customer acquisition cost from marketing campaign facts
2. Purchase Behavior: Analyze purchase patterns from sales facts
3. Service Requirements: Measure support costs from customer service facts
4. Integrated CLV: Combine these metrics into a comprehensive lifetime value calculation

By integrating sales, inventory, and customer service facts:

1. Sales Performance: Track unit sales and profitability from sales facts
2. Inventory Efficiency: Analyze turnover and stockout rates from inventory facts
3. Quality Indicators: Monitor return rates and service issues from customer service facts
4. Holistic Assessment: Create a balanced product scorecard incorporating all factors

By connecting marketing, sales, and customer service facts:

1. Awareness Phase: Measure campaign effectiveness from marketing facts
2. Consideration Phase: Track online activity prior to purchase
3. Purchase Phase: Monitor transaction details from sales facts
4. Post-Purchase Phase: Analyze support interactions from customer service facts
5. End-to-End Visualization: Construct complete customer journey maps across all touchpoints

While the Galaxy Schema offers tremendous analytical power, it also presents significant implementation challenges that must be carefully addressed.

Ensuring dimensions are truly conformed across multiple fact tables requires rigorous governance:

Solution: Enterprise Data Modeling Standards

• Develop canonical dimension definitions with standard attributes and hierarchies
• Implement master data management processes for key dimensions
• Create formal change management procedures for dimensional modifications
• Establish data stewardship roles for each major dimension

Different business processes often have different data availability timeframes:

Solution: Incremental Processing and Data Latency Management

• Implement incremental ETL processes with appropriate change data capture
• Clearly document and communicate expected data latency for each fact table
• Consider separate update schedules based on business requirements
• Provide data freshness indicators in reports and dashboards

Queries spanning multiple fact tables can present performance challenges:

Solution: Optimization Techniques

• Create aggregate tables for common cross-fact analytical patterns
• Implement materialized views for frequently joined fact combinations
• Design summary fact tables that consolidate metrics from multiple processes
• Apply appropriate indexing strategies for shared dimensions
• Use columnar storage for efficient processing of selective attributes

Loading multiple interconnected fact and dimension tables requires sophisticated ETL:

Solution: Modular ETL Architecture

• Develop dimension-focused ETL modules that can be reused across fact tables
• Implement dependency management in the ETL workflow
• Create robust error handling and recovery processes
• Design dimension processing to precede fact table loading
• Establish clear data quality validation at each ETL stage

The Galaxy Schema is particularly well-suited for certain data warehousing scenarios:

1. Enterprise Data Warehouses: When creating a unified analytical environment spanning multiple departments
2. Integrated Business Processes: When business processes are tightly interconnected and require cross-process analysis
3. Balanced Scorecard Implementations: When implementing enterprise performance management systems requiring metrics from diverse sources
4. Customer-Centric Analytics: When analyzing customer interactions across multiple touchpoints and channels
5. Supply Chain Optimization: When integrating procurement, inventory, manufacturing, and distribution analytics

1. Independent Data Marts: When business processes are truly isolated with minimal analytical overlap
2. Rapid Development Requirements: When time-to-market is critical and the complexity of a Galaxy Schema would delay implementation
3. Limited Analytical Scope: When analysis is primarily focused on a single business process
4. Resource-Constrained Environments: When limited development resources make it difficult to implement and maintain the more complex model

Successfully implementing a Galaxy Schema requires careful technical planning and execution.

Rather than building the entire Galaxy Schema at once, consider a phased approach:

1. Prioritize Core Business Processes: Begin with the most critical fact tables and dimensions
2. Establish Dimensional Standards: Define conformed dimensions early in the process
3. Implement Independent Stars: Build individual star schemas following the conformed dimensions
4. Connect the Constellation: Integrate the separate stars into the complete Galaxy Schema
5. Iterate and Expand: Add additional fact tables and enhance dimensions incrementally

Modern data platforms offer features that enhance Galaxy Schema implementations:

• Columnar Storage: Improves performance for selective dimension attribute access
• In-Memory Processing: Accelerates complex joins across multiple fact tables
• Massively Parallel Processing: Enables efficient processing of large dimension tables
• Dynamic Query Optimization: Intelligently rewrites queries to leverage appropriate indexes and aggregates
• Semantic Layers: Abstract physical complexity while preserving analytical flexibility

To maximize the effectiveness of shared dimensions:

1. Natural Keys vs. Surrogate Keys: Implement surrogate keys for all dimensions to manage changes effectively
2. Slowly Changing Dimension Strategies: Apply consistent SCD approaches across all fact tables
3. Hierarchical Dimension Design: Create consistent hierarchies that support drill-down analysis
4. Conformed Attribute Naming: Establish clear naming conventions for dimension attributes
5. Multi-Valued Dimensions: Develop consistent approaches for handling many-to-many relationships

As data architectures evolve, the Galaxy Schema concept has expanded beyond traditional relational data warehouses.

Cloud platforms enhance the Galaxy Schema with:

• Elastic scaling to handle large shared dimensions
• Separation of storage and compute for cost efficiency
• Automated performance optimization
• Simplified management of complex schemas

The principles of Galaxy Schema inform data mesh implementations through:

• Domain-oriented ownership of data products
• Standardized dimensional interfaces
• Self-service analytical capabilities
• Federated governance of shared dimensions

Modern implementations often combine:

• Galaxy Schema in the relational layer
• Denormalized views in the semantic layer
• NoSQL databases for specialized analytical patterns
• Data virtualization to unify diverse data sources

The Galaxy Schema represents more than just a database design pattern—it embodies a comprehensive approach to enterprise data integration. By connecting multiple business processes through shared dimensional context, it creates an analytical environment that mirrors the interconnected nature of modern business operations.

While implementing a Galaxy Schema requires significant investment in design, development, and governance, the resulting analytical capabilities provide a foundation for truly integrated business intelligence. For organizations seeking to move beyond departmental data silos toward enterprise-wide analytics, the Galaxy Schema offers a proven architectural pattern that balances analytical power with implementation practicality.

As data volumes grow and business processes become increasingly interconnected, the ability to analyze relationships across traditional functional boundaries becomes ever more valuable. The Galaxy Schema provides the architectural framework to transform disparate data points into a cohesive analytical constellation that illuminates the entire enterprise.

---
