Database Normalization: The Foundation of Efficient Data Design

Database normalization serves as the cornerstone of relational database design, providing a systematic approach to organizing data efficiently while minimizing redundancy and dependency issues. For data engineers, understanding normalization forms is essential to creating robust, maintainable, and high-performing database systems.

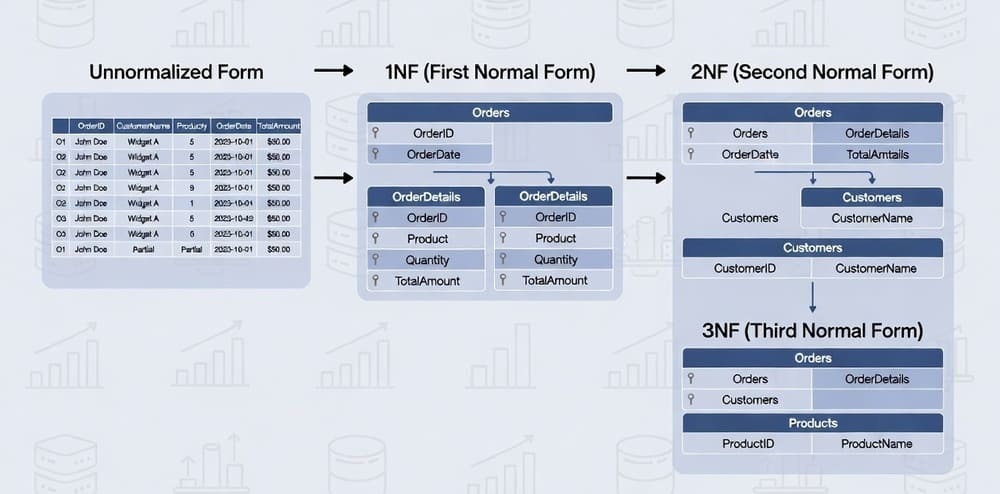

Normalization is the process of structuring a relational database according to a series of normal forms to reduce data redundancy and improve data integrity. Developed by Edgar F. Codd in the 1970s, these principles have become fundamental to modern database design.

• Definition: Each table cell must contain a single value, and each record must be unique
• Key Benefits: Eliminates duplicative columns and creates separate tables for related data
• Implementation: Remove repeating groups, identify primary keys, and ensure atomic values
• Example: Splitting a “Phone Numbers” field containing multiple numbers into separate records

• Definition: Meets all 1NF requirements and all non-key attributes are fully functionally dependent on the primary key
• Key Benefits: Removes subsets of data that apply to multiple rows
• Implementation: Create separate tables for sets of values that apply to multiple records
• Example: Moving product information from an orders table to a dedicated products table

• Definition: Meets all 2NF requirements and all attributes are directly dependent on the primary key
• Key Benefits: Eliminates fields that do not depend on the key
• Implementation: Remove attributes that are dependent on other non-key attributes
• Example: Moving customer address details to a separate table if they’re not dependent on the order ID

• Definition: A stronger version of 3NF where every determinant must be a candidate key
• Key Benefits: Addresses certain anomalies not handled by 3NF
• Implementation: Decompose relations where non-key attributes determine other attributes
• Example: Restructuring a faculty-course-student table to eliminate overlapping candidate keys

• Definition: Meets BCNF requirements and has no multi-valued dependencies
• Key Benefits: Addresses issues with independent multi-valued facts about an entity
• Implementation: Separate independent multiple relationships into different tables
• Example: Splitting a student’s courses and activities into separate tables

• Definition: Also known as Project-Join Normal Form (PJNF), deals with join dependencies
• Key Benefits: Eliminates redundancies that cannot be addressed by previous forms
• Implementation: Decompose tables to eliminate join dependencies
• Example: Breaking down complex many-to-many relationships into simpler relations

• Definition: A relation where all constraints are logical consequences of domain constraints and key constraints
• Key Benefits: Represents the “ultimate” normal form, though often theoretical
• Implementation: Ensure all constraints can be enforced by domains and keys alone
• Example: Designing a system where all business rules are enforced through domains and keys

• OLTP Systems: Transaction processing systems benefit greatly from normalization
• Data Integrity Requirements: When accuracy and consistency are paramount
• Database Size Management: Reducing redundancy in large datasets
• Frequent Update Scenarios: Systems with regular insertions, updates, and deletions

• OLAP Systems: Analytical processing may benefit from some denormalization
• Query Performance Optimization: When read performance is critical
• Reporting Databases: Simplified structures for business intelligence
• Data Warehousing: Dimensional modeling often uses controlled redundancy

While normalization principles originated in traditional relational database contexts, they remain relevant in modern data engineering scenarios:

• Microservices Databases: Properly normalized databases help define service boundaries
• NoSQL Considerations: Understanding when to apply or intentionally violate normalization
• Data Lake Design: Influencing how data is organized in raw, processed, and curated zones
• Data Mesh Architectures: Domain-driven data products often leverage normalization concepts

• Incremental Approach: Start with 1NF and proceed gradually
• Balance Theory with Practicality: Consider performance implications
• Document Decisions: Maintain clear documentation of normalization decisions
• Evaluate Trade-offs: Consider the specific needs of your application

• Database Design Software: Tools like ER/Studio, ERwin, and Lucidchart
• Normalization Validators: Software that can analyze existing schemas
• ORM Frameworks: How tools like Hibernate and Entity Framework support normalization
• Data Modeling Templates: Starting points for properly normalized designs

By thoughtfully applying normalization principles, data engineers can build database systems that are more maintainable, flexible, and resistant to anomalies while still meeting performance requirements.
