SCD Type 7: Bi-temporal – The Ultimate Dimension for Regulatory Compliance and Advanced Analytics

In the evolving world of data engineering, few approaches offer the comprehensive auditing, compliance, and analytical capabilities of bi-temporal data modeling. SCD Type 7, the bi-temporal dimension, represents the most sophisticated level of historical tracking in the Slowly Changing Dimension (SCD) hierarchy. By capturing both business time and system time dimensions, Type 7 creates a complete matrix of historical states that enables unprecedented analytical depth and regulatory documentation.

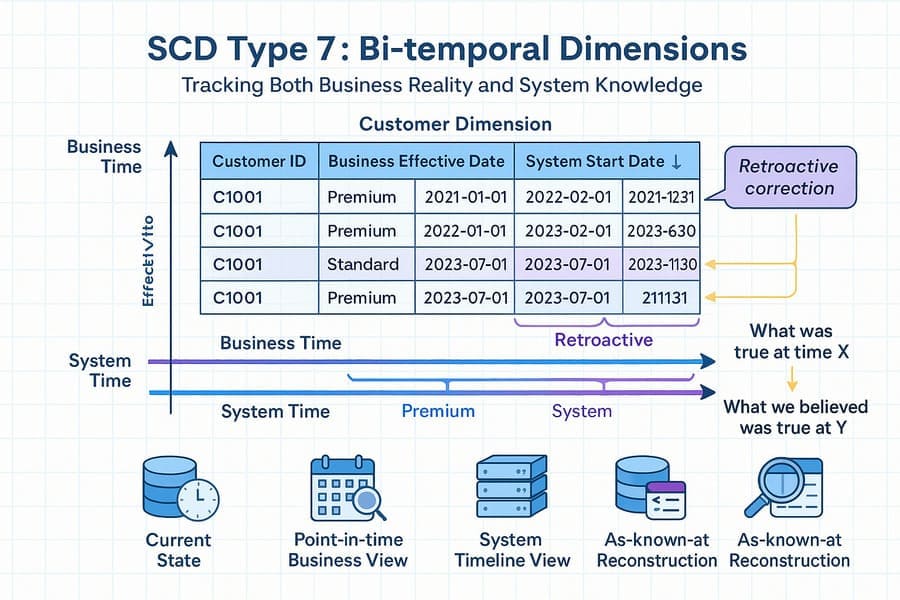

At its core, SCD Type 7 manages two distinct but equally important time dimensions:

1. Business Time: When a change is considered valid in the business context
2. System Time: When a change was recorded in the system

This dual-time approach creates a fundamentally different capability than simpler SCD types—the ability to answer not just “what was true at a given point in time?” but also “what did we believe to be true at a given point in time?” This distinction is crucial for regulatory compliance, audit requirements, and advanced analytical scenarios.

The defining characteristics that make Type 7 unique among SCD methodologies include:

• Dual Temporal Tracking: Explicit management of both business and system time
• Retroactive Change Support: Ability to correctly handle backdated modifications
• Complete Audit Trail: Preservation of every state the system has ever recorded
• True/Belief Matrix: Ability to distinguish what was true from what was believed true
• Time Travel Capabilities: Reconstruction of the database as it existed at any point
• Correction vs. Update Distinction: Separation of error corrections from legitimate changes

A properly implemented Type 7 dimension includes explicit tracking for both time dimensions:

DimCustomer {
    CustomerKey (PK)
    CustomerID (Natural Key)

    // Core business attributes
    CustomerName
    CustomerAddress
    CustomerCity
    CustomerState
    CustomerZIP
    CustomerSegment
    CreditRating

    // Business time tracking
    BusinessEffectiveDate      // When this version became valid in business reality
    BusinessEndDate            // When this version ceased to be valid in business

    // System time tracking
    SystemStartDate            // When we recorded this information
    SystemEndDate              // When we replaced this information with new data

    // Metadata
    RecordSource               // Source of this information
    TransactionID              // Identifier for the change transaction
    ChangeType                 // 'Update', 'Correction', 'Initial', etc.
}

In this structure, each customer record exists within a four-dimensional matrix: the entity itself (CustomerID), the attributes, the business time period, and the system time period. This creates a complete historical record that can reconstruct not only how the entity changed over time but also how our understanding of that entity evolved.

Bi-temporal dimensions represent a significant implementation investment, making it essential to identify scenarios where their capabilities deliver superior value:

When strict regulatory frameworks demand complete historical documentation:

• Financial Services: Basel, Dodd-Frank, IFRS requirements for risk calculations
• Healthcare: HIPAA compliance with complete audit trails of patient data
• Insurance: Actuarial calculations requiring point-in-time accuracy
• Securities Trading: SEC requirements for historical price and position data

When business rules require backdated changes to historical data:

• Tax Legislation Changes: Retroactive application of new tax rules
• Contract Modifications: Backdated adjustments to terms and conditions
• Pricing Corrections: Fixing historically incorrect price applications
• Reclassifications: Retroactive changes to entity categorizations

When historical investigation needs system state reconstruction:

• Fraud Investigation: Understanding what was known at the time of decisions
• Error Analysis: Determining when incorrect information entered systems
• Process Evaluation: Assessing decision quality based on available information
• Timeline Reconstruction: Building accurate chronologies of events and knowledge

When sophisticated analysis requires separate tracking of business and system reality:

• Decision Efficiency Analysis: Measuring time lag between events and recognition
• Information Quality Assessment: Evaluating accuracy of initial data capture
• Predictive Modeling: Using knowledge delay patterns to improve forecasting
• Counterfactual Analysis: “What if we had known sooner?” scenarios

Implementing SCD Type 7 requires careful design and sophisticated ETL processes to maintain the dual-time dimensions accurately.

The foundation of an effective Type 7 implementation lies in properly structuring the temporal aspects:

Defining how time periods are recorded and managed:

• Closed vs. Open Intervals: Start/end dates vs. start/duration
• Time Precision: Date-only vs. timestamp with time components
• Infinite End Dates: NULL vs. high-value date (9999-12-31)
• Time Zone Handling: UTC standardization vs. local time storage

Options for handling the potentially large number of versions:

• Natural Key + Temporal Components: Composite keys including time elements
• Sequence or Identity Keys: Auto-generated surrogate keys
• Hash Keys: Deterministic generation based on content and time
• GUID/UUID Approaches: Globally unique identifiers for each version

Ensuring temporal consistency in the database:

• Non-Overlapping Periods: Preventing conflicting valid time ranges
• Sequential System Times: Ensuring system times reflect actual recording sequence
• Complete Coverage: Avoiding gaps in the timeline for entities
• Referential Integrity: Maintaining consistency with related tables

The process of maintaining bi-temporal dimensions requires sophisticated change management:

During the first load of a dimension:

1. Set BusinessEffectiveDate based on when the entity’s attributes became valid
2. Set BusinessEndDate to NULL or far-future date (open-ended validity)
3. Set SystemStartDate to the current load time
4. Set SystemEndDate to NULL or far-future date (current system version)
5. Record appropriate metadata about the initial load

When attributes change in the normal course of business:

1. Close the current system version (set SystemEndDate to current timestamp)
2. Insert a new record with:
   • Updated attribute values
   • BusinessEffectiveDate set to when change becomes valid
   • BusinessEndDate set to NULL or far-future date
   • SystemStartDate set to current timestamp
   • SystemEndDate set to NULL or far-future date

When processing a change that is effective in the past:

1. Close current system version (set SystemEndDate to current timestamp)
2. Insert new records to represent the retroactive timeline:
   • Create records with appropriate business time slices
   • Set all SystemStartDate values to current timestamp
   • Set all SystemEndDate values to NULL or far-future date
   • Adjust BusinessEffectiveDate and BusinessEndDate values to represent the corrected history

When fixing errors in previously recorded data:

1. Close the erroneous system version (set SystemEndDate to current timestamp)
2. Insert a corrected record with:
   • Fixed attribute values
   • Same BusinessEffectiveDate as the record being corrected
   • Same BusinessEndDate as the record being corrected
   • SystemStartDate set to current timestamp
   • SystemEndDate set to NULL or far-future date
   • ChangeType flagged as ‘Correction’

-- Step 1: Close current system version for customer being updated
UPDATE DimCustomer
SET SystemEndDate = CURRENT_TIMESTAMP
WHERE CustomerID = 'C1001'
AND SystemEndDate IS NULL;

-- Step 2: Insert new version with updated information
-- Case A: Standard update (business effective now)
INSERT INTO DimCustomer (
    CustomerID,
    CustomerName,
    CustomerAddress,
    CustomerCity,
    CustomerState,
    CustomerZIP,
    CustomerSegment,
    CreditRating,
    BusinessEffectiveDate,
    BusinessEndDate,
    SystemStartDate,
    SystemEndDate,
    RecordSource,
    TransactionID,
    ChangeType
)
SELECT
    'C1001',
    'John Smith', -- Updated name
    '123 Main St',
    'Chicago',    -- Updated city
    'IL',         -- Updated state
    '60601',
    'Premium',
    'A',
    CURRENT_DATE, -- Business effective today
    NULL,         -- Indefinite business validity
    CURRENT_TIMESTAMP, -- System time now
    NULL,         -- Current system version
    'CRM System',
    'TX' + CAST(NEXT VALUE FOR TransactionSeq AS VARCHAR),
    'Update'
;

-- Case B: Retroactive update (business effective in the past)
INSERT INTO DimCustomer (
    CustomerID,
    CustomerName,
    CustomerAddress,
    CustomerCity,
    CustomerState,
    CustomerZIP,
    CustomerSegment,
    CreditRating,
    BusinessEffectiveDate,
    BusinessEndDate,
    SystemStartDate,
    SystemEndDate,
    RecordSource,
    TransactionID,
    ChangeType
)
SELECT
    'C1001',
    'John Smith',
    '123 Main St',
    'Chicago',
    'IL',
    '60601',
    'Premium',
    'A',
    '2023-01-15', -- Business effective retroactively
    NULL,         -- Indefinite business validity
    CURRENT_TIMESTAMP, -- System time now
    NULL,         -- Current system version
    'CRM System',
    'TX' + CAST(NEXT VALUE FOR TransactionSeq AS VARCHAR),
    'Retroactive'
;

-- Case C: Correction (fixing an error)
INSERT INTO DimCustomer (
    CustomerID,
    CustomerName,
    CustomerAddress,
    CustomerCity,
    CustomerState,
    CustomerZIP,
    CustomerSegment,
    CreditRating,
    BusinessEffectiveDate,
    BusinessEndDate,
    SystemStartDate,
    SystemEndDate,
    RecordSource,
    TransactionID,
    ChangeType
)
SELECT
    'C1001',
    'John Smith',
    '123 Main St',
    'Chicago',
    'IL',
    '60601',
    'Premium',
    'A',
    '2023-01-15', -- Same business dates as incorrect record
    '2023-06-30', -- Same business end date
    CURRENT_TIMESTAMP, -- System time now
    NULL,         -- Current system version
    'Data Correction Process',
    'TX' + CAST(NEXT VALUE FOR TransactionSeq AS VARCHAR),
    'Correction'
;

The power of Type 7 dimensions comes from their ability to support sophisticated temporal queries that other SCD types cannot address.

Retrieving the current business state as known today:

-- Current business state (latest business view as of now)
SELECT
    CustomerID,
    CustomerName,
    CustomerAddress,
    CustomerCity,
    CustomerState,
    CustomerZIP,
    CustomerSegment,
    CreditRating
FROM DimCustomer
WHERE CURRENT_DATE BETWEEN BusinessEffectiveDate AND COALESCE(BusinessEndDate, '9999-12-31')
AND SystemEndDate IS NULL;

Reconstructing the business reality as of a specific date:

-- Business state as of a specific date (using current system knowledge)
SELECT
    CustomerID,
    CustomerName,
    CustomerAddress,
    CustomerCity,
    CustomerState,
    CustomerZIP,
    CustomerSegment,
    CreditRating
FROM DimCustomer
WHERE '2023-06-15' BETWEEN BusinessEffectiveDate AND COALESCE(BusinessEndDate, '9999-12-31')
AND SystemEndDate IS NULL;

-- Fact analysis with contemporary business dimensional context
SELECT
    C.CustomerSegment,
    SUM(F.SalesAmount) AS TotalSales
FROM FactSales F
JOIN DimCustomer C
    ON F.CustomerID = C.CustomerID
    AND F.TransactionDate BETWEEN C.BusinessEffectiveDate AND COALESCE(C.BusinessEndDate, '9999-12-31')
    AND C.SystemEndDate IS NULL
GROUP BY C.CustomerSegment;

Examining how our understanding evolved over time:

-- How our knowledge of a customer changed over time
SELECT
    CustomerID,
    CustomerName,
    CustomerSegment,
    CreditRating,
    BusinessEffectiveDate,
    BusinessEndDate,
    SystemStartDate,
    SystemEndDate,
    ChangeType
FROM DimCustomer
WHERE CustomerID = 'C1001'
ORDER BY SystemStartDate;

The most powerful bi-temporal capability—reconstructing what was believed at a point in time:

-- What we believed about the customer on 2023-05-01
SELECT
    CustomerID,
    CustomerName,
    CustomerAddress,
    CustomerCity,
    CustomerState,
    CustomerZIP,
    CustomerSegment,
    CreditRating,
    BusinessEffectiveDate,
    BusinessEndDate
FROM DimCustomer
WHERE '2023-06-15' BETWEEN BusinessEffectiveDate AND COALESCE(BusinessEndDate, '9999-12-31')
AND '2023-05-01' BETWEEN SystemStartDate AND COALESCE(SystemEndDate, '9999-12-31')
AND CustomerID = 'C1001';

-- Reconstructing a report as it would have been run on a specific date
SELECT
    C.CustomerSegment,
    SUM(F.SalesAmount) AS TotalSales
FROM FactSales F
JOIN DimCustomer C
    ON F.CustomerID = C.CustomerID
    AND F.TransactionDate BETWEEN C.BusinessEffectiveDate AND COALESCE(C.BusinessEndDate, '9999-12-31')
    AND '2023-05-01' BETWEEN C.SystemStartDate AND COALESCE(C.SystemEndDate, '9999-12-31')
GROUP BY C.CustomerSegment;

Assessing the effect of data corrections:

-- Identifying all corrections made to customer data
SELECT
    CustomerID,
    COUNT(*) AS CorrectionCount,
    MIN(SystemStartDate) AS FirstCorrection,
    MAX(SystemStartDate) AS MostRecentCorrection
FROM DimCustomer
WHERE ChangeType = 'Correction'
GROUP BY CustomerID
HAVING COUNT(*) > 0;

-- Comparing original vs. corrected segment assignment impact on sales analysis
WITH OriginalSegments AS (
    SELECT
        F.TransactionDate,
        C.CustomerID,
        C.CustomerSegment AS OriginalSegment,
        F.SalesAmount
    FROM FactSales F
    JOIN DimCustomer C
        ON F.CustomerID = C.CustomerID
        AND F.TransactionDate BETWEEN C.BusinessEffectiveDate AND COALESCE(C.BusinessEndDate, '9999-12-31')
        AND C.ChangeType <> 'Correction'
),
CorrectedSegments AS (
    SELECT
        F.TransactionDate,
        C.CustomerID,
        C.CustomerSegment AS CorrectedSegment,
        F.SalesAmount
    FROM FactSales F
    JOIN DimCustomer C
        ON F.CustomerID = C.CustomerID
        AND F.TransactionDate BETWEEN C.BusinessEffectiveDate AND COALESCE(C.BusinessEndDate, '9999-12-31')
        AND C.SystemEndDate IS NULL
)
SELECT
    O.OriginalSegment,
    C.CorrectedSegment,
    SUM(O.SalesAmount) AS OriginalAnalysis,
    SUM(C.SalesAmount) AS CorrectedAnalysis,
    (SUM(C.SalesAmount) - SUM(O.SalesAmount)) AS AnalysisDifference
FROM OriginalSegments O
JOIN CorrectedSegments C
    ON O.CustomerID = C.CustomerID
    AND O.TransactionDate = C.TransactionDate
WHERE O.OriginalSegment <> C.CorrectedSegment
GROUP BY O.OriginalSegment, C.CorrectedSegment;

To fully appreciate Type 7, it’s valuable to contrast it with other SCD methodologies:

Aspect	Type 7 (Bi-temporal)	Type 2 (Add New Row)
Time Dimensions	Business time + System time	Single time dimension
Retroactive Changes	Fully supported	Not supported without losing history
Historical State	Complete business + system history	Business history only
Error Correction	Distinguished from updates	Indistinguishable from updates
Query Complexity	High	Moderate
Storage Impact	Very significant	Significant
Implementation Complexity	Very high	Moderate
Use Case	Regulatory + analytical needs	Basic historical tracking

Aspect	Type 7 (Bi-temporal)	Type 6 (Hybrid 1+2+3)
Time Dimensions	Business time + System time	Single time dimension with optimizations
Retroactive Changes	Fully supported	Limited support
Current Access	Through temporal filtering	Optimized current columns
Previous Values	Full timeline reconstruction	Limited previous value tracking
Implementation Complexity	Very high	High
Business Value	Maximum compliance capability	Maximum analytical flexibility

Aspect	Type 7 (Bi-temporal)	Type 4 (History Table)
Architecture	Dual-time tracking in single structure	Current/history table separation
Retroactive Changes	Fully supported	Limited support in most implementations
System Time Tracking	Explicit	Implicit or absent
Current State Performance	Requires filtering	Optimized
Implementation Complexity	Very high	High
Use Case	Compliance-driven	Performance-driven

To illustrate a practical Type 7 implementation, consider this financial product dimension for a banking institution:

DimFinancialProduct {
    ProductKey (PK)
    ProductID

    // Core business attributes
    ProductName
    ProductCategory
    ProductSubcategory
    InterestRate
    MinimumBalance
    MonthlyFee
    RiskRating
    RegulatoryClassification
    TaxTreatment

    // Business time tracking
    BusinessEffectiveDate
    BusinessEndDate

    // System time tracking
    SystemStartDate
    SystemEndDate

    // Metadata
    RecordSource
    TransactionID
    ApprovalID
    ChangeType
    ChangeReason
}

This bi-temporal implementation enables the bank to:

• Comply with financial regulations requiring complete audit trails
• Handle retroactive changes to product classifications
• Reconstruct regulatory reports as they would have been generated on specific dates
• Document when product information was updated in systems vs. when changes took effect
• Distinguish between legitimate updates and error corrections
• Support legal discovery requirements with complete historical timelines

To successfully implement Type 7 dimensions, consider these best practices:

Establish explicit policies for handling time dimensions:

• Define when business effective dates should be backdated
• Document rules for handling future-dated changes
• Establish protocols for correction vs. update classification
• Create clear policies for retroactive processing

Develop sophisticated processes to maintain temporal integrity:

• Implement transaction management for atomic updates
• Create specialized pipelines for different change types
• Develop comprehensive validation for temporal overlaps
• Establish exception handling for temporal conflicts

Consider performance implications in the database design:

• Implement appropriate partitioning strategies
• Create tailored indexes for common temporal queries
• Consider temporal-specific compression techniques
• Evaluate columnar storage for temporal attributes

Provide clear guidance for accessing bi-temporal data:

• Document standard patterns for current state access
• Create templates for point-in-time queries
• Provide examples of as-known-at queries
• Develop views that simplify common access patterns

Add rich context to support compliance requirements:

• Track change authorization information
• Document reasons for modifications
• Link to supporting documentation
• Maintain approval workflows and IDs

Several specialized patterns have emerged to address specific Type 7 implementation challenges:

Leveraging native temporal features in modern databases:

-- SQL Server temporal table with additional business time tracking
CREATE TABLE DimCustomer (
    CustomerKey INT PRIMARY KEY,
    CustomerID VARCHAR(20),
    CustomerName VARCHAR(100),
    CustomerAddress VARCHAR(200),
    CustomerSegment VARCHAR(50),

    -- Business time
    BusinessEffectiveDate DATE NOT NULL,
    BusinessEndDate DATE NULL,

    -- System time (managed by temporal table feature)
    SysStartTime DATETIME2 GENERATED ALWAYS AS ROW START NOT NULL,
    SysEndTime DATETIME2 GENERATED ALWAYS AS ROW END NOT NULL,

    -- Metadata
    ChangeType VARCHAR(20),

    PERIOD FOR SYSTEM_TIME (SysStartTime, SysEndTime)
)
WITH (SYSTEM_VERSIONING = ON (HISTORY_TABLE = dbo.DimCustomerHistory));

Separating attribute history into normalized tables:

// Main entity table
DimCustomer_Entity {
    CustomerKey (PK)
    CustomerID
    BusinessEffectiveDate
    BusinessEndDate
    SystemStartDate
    SystemEndDate
}

// Attribute history tables
DimCustomer_Addresses {
    CustomerKey (FK)
    AddressTypeKey
    AddressLine1
    AddressLine2
    City
    State
    ZIPCode
    BusinessEffectiveDate
    BusinessEndDate
    SystemStartDate
    SystemEndDate
}

DimCustomer_Classifications {
    CustomerKey (FK)
    CustomerSegment
    CreditRating
    RiskCategory
    BusinessEffectiveDate
    BusinessEndDate
    SystemStartDate
    SystemEndDate
}

This approach reduces redundancy when only some attributes change, at the cost of more complex querying.

Combining bi-temporal tracking with detailed change logs:

// Bi-temporal dimension
DimCustomer {
    CustomerKey (PK)
    CustomerID
    ... attributes ...
    BusinessEffectiveDate
    BusinessEndDate
    SystemStartDate
    SystemEndDate
    ChangeAuditID (FK)
}

// Detailed audit table
CustomerChangeAudit {
    ChangeAuditID (PK)
    ChangeTimestamp
    ChangeUserID
    ChangeApplication
    ChangeType
    ChangeBatchID
    ChangeTriggerEvent
    ChangeJustification
    ApprovalWorkflowID
    ... additional audit details ...
}

This pattern separates detailed audit metadata from the core bi-temporal structure.

Several challenges typically arise in Type 7 implementations:

The sophisticated temporal structure makes querying difficult:

Solution:

• Create views for common temporal queries
• Develop user-defined functions for temporal operations
• Implement semantic layers in BI tools
• Provide query templates and examples

Bi-temporal structures can impact query performance:

Solution:

• Implement temporal-aware indexing strategies
• Consider materialized views for common temporal states
• Create summary tables for frequent time points
• Develop caching strategies for current state access

Managing the dual time dimensions adds complexity:

Solution:

• Develop specialized ETL patterns for different change types
• Create reusable components for temporal processing
• Implement comprehensive testing for temporal scenarios
• Consider metadata-driven approaches for flexibility

Bi-temporal history can consume significant storage:

Solution:

• Implement appropriate compression strategies
• Consider columnar storage for temporal data
• Apply archiving policies for ancient history
• Evaluate partitioning for efficient management

The bi-temporal concept extends beyond traditional data warehousing:

In Data Vault modeling, Type 7 concepts appear in:

• Satellites with dual effective dating
• Point-in-Time tables with system time awareness
• Bridge tables with business and system temporal context
• Multi-temporal Satellites with explicit time dimensions

Bi-temporal principles in data lake environments:

• Time-partitioned storage with dual time dimensions
• Bi-temporal metadata tagging in bronze/silver/gold layers
• Delta Lake with time travel enhanced with business time
• Query engines with explicit bi-temporal support

Implementing Type 7 in modern cloud platforms:

• Snowflake’s Time Travel with custom business time extensions
• BigQuery’s temporal predicates with bi-temporal enhancements
• Databricks Delta Lake with business time metadata
• Event-sourced architectures with projection reconstruction

SCD Type 7 represents the pinnacle of dimensional history management, providing capabilities that no other approach can match. By tracking both business time and system time, bi-temporal dimensions create a complete historical matrix that enables organizations to accurately reconstruct not only what was true at any point in time, but also what was believed to be true at any point in time.

While the implementation complexity and storage requirements exceed those of simpler SCD types, the compliance, audit, and analytical capabilities delivered by Type 7 make it an essential approach for organizations in regulated industries or those with sophisticated historical analysis needs. The ability to handle retroactive changes, distinguish corrections from updates, and reconstruct historical system states provides a foundation for regulatory reporting, legal discovery, and advanced analytics that other approaches simply cannot deliver.

For data engineers and architects designing dimensional models for regulatory-intensive domains, understanding bi-temporal modeling is no longer optional—it’s increasingly becoming a core competency. As compliance requirements grow more stringent and analytical needs become more sophisticated, the dual-time perspective offered by Type 7 dimensions will continue to provide the most comprehensive solution for managing the complex relationship between business reality and our evolving understanding of it.

---

Keywords: SCD Type 7, bi-temporal dimensions, Slowly Changing Dimensions, temporal data modeling, regulatory compliance, data warehouse design, system time, business time, retroactive changes, data corrections, historical data, audit trail, point-in-time analysis, as-known-at queries, financial reporting, data engineering

Hashtags: #SCDType7 #BiTemporalDimensions #DataWarehouse #RegulatoryCompliance #TemporalData #DataEngineering #DimensionalModeling #BusinessIntelligence #DataGovernance #Auditability #RetroactiveChanges #PointInTimeAnalysis #AsKnownAt #DataArchitecture #FinancialReporting
